Week 4: Repositories and Version Control

Week 4: Repositories and Version Control#

Studio Abstract#

In this studio, we will discuss repositories and why they are important; and you will set up a repository for your team and use it for the first time. We will also discuss small-team project planning, and how to use Github planner to help track who does what by when.

We will address the following activities and exercises in this studio:

Overview of repositories
Setting up and using a team repository on GitHub
Using Markdown for documentation
Basics of managing a small-team project
Setting up Github Projects

Repositories in COMP1100/COMP7110#

You will use source code repositories as the main method for submitting your work in this course.

The individual student contribution to the team component is determined by the logs in the source code repository.

Therefore, you must use the source code repository to submit any work that you do, even sharing files with team members.

Repositories in software projects#

⏱️ 15 minutes - Class discussion

Devices closed for this discussion

Source code repositories (which can be used for much more than source code!) using tools such as Git and Mercurial are commonplace in software projects. They allow teams to create, store, manage and share their code and other documentation, but they are much more than tools like Google Drive, OneDrive, or DropBox – they help to resolve conflicts in editing, and to create sub-projects so that you can work on part of a product without affecting the rest.

Git, originally created by Linus Torvalds, creator of Linux, is the most commonly-used repository tool. It is a distributed version control system to track versions of files.

GitHub is a company that provides a browser or desktop based user interface for Git. There are many ways to use Git, and there are other companies that provide Git services, but GitHub is one of the more popular services. In this course, we will use GitHub for our projects, because it is a well-known tool, and because the course staff can set up a shared space for all projects in the course.

Why use repositories?#

Surely, we can just share source code via email or a messaging app by zipping it up, or just share it on Google Docs, OneDrive, DropBox, etc!

Well… we can do that, but it is a Very Bad Idea (VBI)!

First, in this course, it means that the staff won’t be able to tell that you have been achieving the learning outcomes, because we won’t know who did what.

But even in real-world projects, it’s a VBI.

Consider Imogen and Zac working collaboratively on a software project using a shared drive, such as Google Drive. One day, Imogen downloads a file to work on. A bit later, Zac does too. Imogen makes some changes and then copies the file back to the server. Her changes are all there! A bit later, Zac uploads his copy of the file. His changes are all there! After lunch, Imogen needs to make some further changes, so she gets the file again, knowing that Zac had worked on it. What would she find??

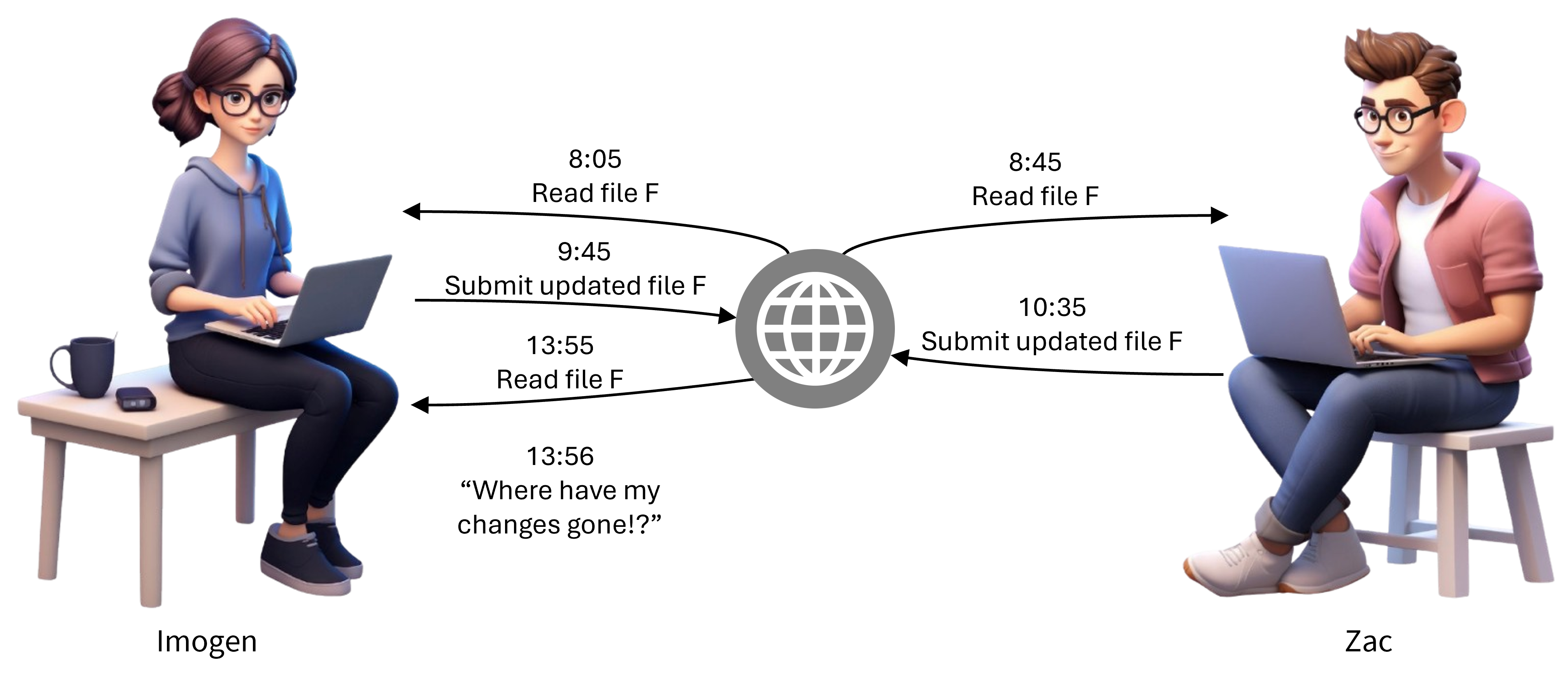

figs/file_overwrite_without_repository.png

After Imogen recovers from her extreme disappointment, she will have to work with Zac despite the fact she will resent him! They will have to merge the changes and update them.

How can we solve this? One option is to only allow one person to work on one file at a time. This is okay, but it can cause blocks; sometimes people want to make minor changes to the same files. What if Zac is working on something for a week and Imogen just needs to correct a small bug?

Source code repositories help us with all this with several pieces of functionality:

Pulls: Multiple people can work on the same file at the same time. They first pull any other changes made from the repository since they last used it.

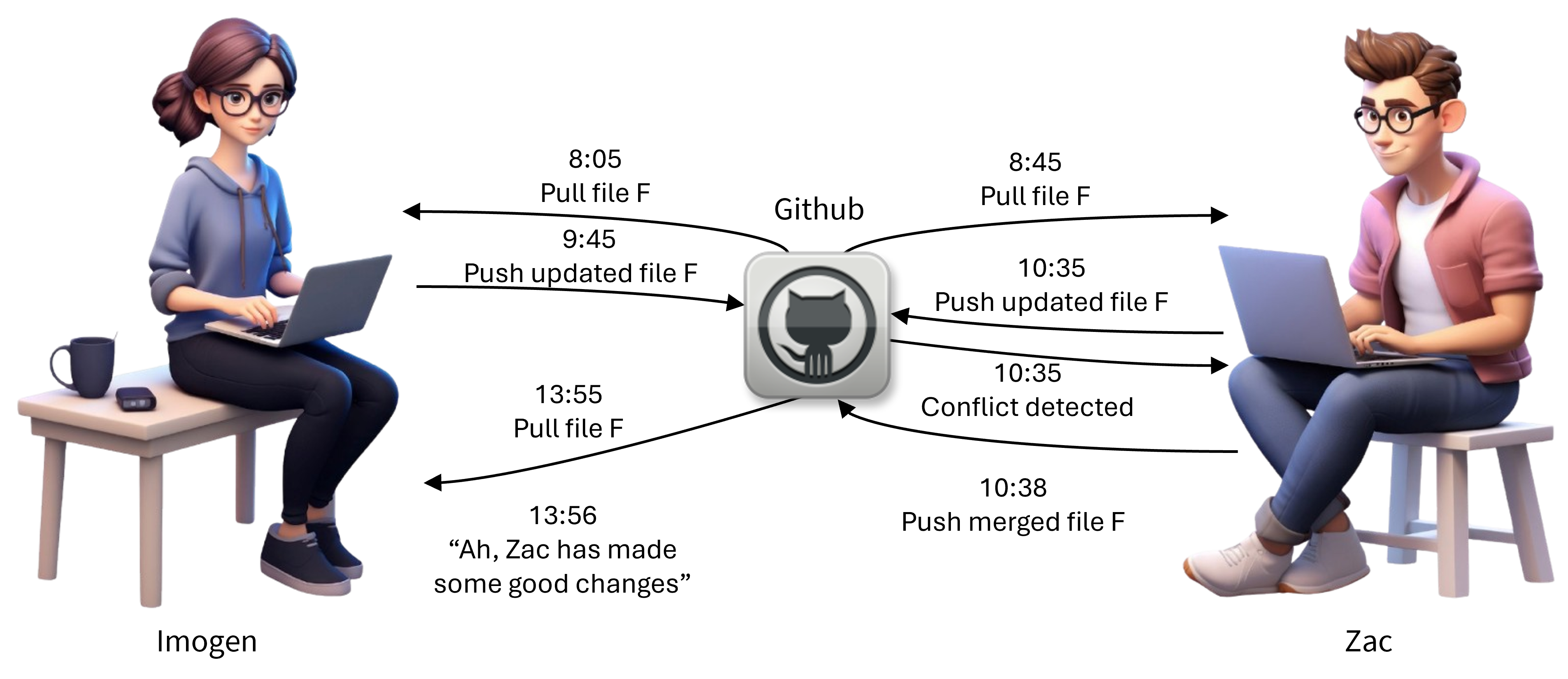

Pushes: When Imogen pushes her changes to the shared repository, three things can happen:

Nobody else has made changes since Imogen downloaded the latest version, so everything is good.
If Zac or someone else has made changes to the same file but at different lines, a repository tool like Git will simply merge the two files automatically.
If Zac or someone else has made changes to the same file and some are on the same lines, a repository tool like Git will prevent Imogen copying the file back, will merge any lines that do not conflict, and will show her lines that do conflict. She then needs to resolve those conflicts. As a quick note, Git has both commits and pushes. Each user maintains a local copy of a repository on their machine. They commit code to the local repository, and then when they are happy, they push it to the server.

Branches and merges: If Imogen wants to make some changes to the source code that will take a few weeks, she may want to keep pushing her changes to the repository to avoid losing her work. However, she may not want everyone else to use those changes yet; for example, they aren’t complete or she hasn’t tested them, this would interfere with others’ code. In this case, she can create a branch of the repository, where she can continue to push changes just to that branch, which doesn’t affect everyone else. Once she is happy, she can merge her branch into the main branch of the repository. If there are conflicts, she will not be able to merge until she resolves them.

Branches#

As an example of using branches, consider Imogen working for an organisation that has a successful web application. They want to add new features, fix bugs, etc., regularly. They release new versions every few days on average to fix bugs. Imagine, they want to go from version V1 to version V1.1 by adding two features, which we’ll call features A and B. Imogen estimates it will take about 4 weeks to implement these.

They may have (at least) three branches:

Main branch: This is the primary branch where the stable, production-ready code resides. Changes here are thoroughly tested and reviewed. It would be a VBI (very bad idea) for Imogen to start coding those new features directly on the main branch; customers would see partially implemented features, probably with bugs.
Development branch: Used for integrating new features and bug fixes before they are merged into the main branch. This branch is less stable than the main branch but more stable than feature branches. However, it would be a bad idea (BI) for Imogen to start adding features directly to this, as other developers in the organisation are also making changes, and it will be difficult for her to test her features while other source code is changing as well.
Feature branches: These are created from the development branch for specific features or fixes. Developers work on these branches independently, allowing them to make changes without affecting the main or development branches. Imogen can create a feature branch from the development branch, that is implementing just her features.

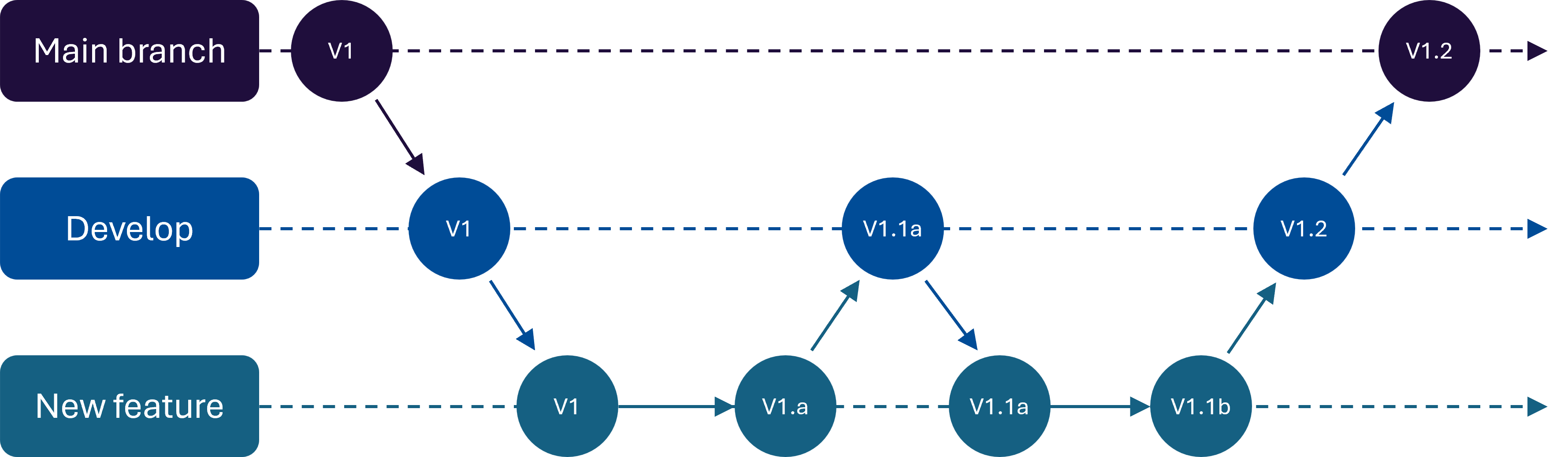

figs/git_branchingpng

Once Imogen has implemented and tested feature A, she merges this. There are three steps to a merge:

Merging feature branches: Once a feature is complete and tested, it is merged into the development branch. So, Imogen would integrate the changes from her feature branch into the development branch.
Conflict resolution: During merging, conflicts may arise if changes overlap. A tool like Git will highlight these conflicts, and developers must resolve them before completing the merge.
Final merge to main branch: After thorough testing and review, changes from the development branch are merged into the main branch. This ensures that only stable and tested code is deployed to production.

Each time these merges happen, conflicts will be detected, and non-conflicting code will be merged. Brilliant! This means that Imogen will actually want to continue working with Zac, rather than resenting him forever and leaving the organisation after six months because she needs a break.

Commit messages#

When someone commits changes to a local repository, they are asked to (and should!) use a commit message. A commit message is a brief description that explains what changes were made and why. This provides context and clarity for other developers to help team members understand why changes are made, who made them, to track progress, and to help rollback when changes introduce new problems.

A good commit message should:

Clearly describe what changes have been made. Messages like “Fixed a bug” or “Updated the code” are not good enough.
Start with a verb; e.g. “Added password encryption”
Be concise. Keep it to a few words per small change.
Reference any issues / tickets that it fixes.
Focus on a single thing; that is, avoid committing changes across many features of the software at once – just make one change or group of changes in each commit.

An example of a nice commit message:

Add user authentication feature

- Implemented login and registration forms
- Added password encryption
- Updated user model to include authentication fields
- Fixed related bugs in user session management

Summary#

Repositories have several important features:

Sharing of code
- Pull
- Commit
- Push
Branches
- Branch
- Merge
- Conflict detection and resolution
Commit messages

Take a break#

⏱️ 10 minutes

Managing merge conflicts#

⏱️ 20 minutes - Group

The challenge for this task is to create an artificial merge conflict. You can do these in a variety of ways.

Use the following documentation to help with this task:

Atlassian’s documentation on merge conflicts in Git

Using the team_values.md file, use your own creativity to come up with a merge conflict between two team members by changing: (a) the same line of the file; and (b) each a different line of the file. This can be just a spelling correction or a small change in wording – or add a whole new team value!

Goal: The end result should be an updated repository with the conflicting changes resolved.

Deliverable: Show your legend that you have successfully completed this task before moving on to the next task.

One quick point on terminology#

Git is a tool that allows us to create and use Git source code repositories.

Github is a web platform for hosting the repository database.

Git repositories can be hosted on other web platforms, such as a private platform in an organisation, or other public platforms, such as BitBucket.

More than source code: using Markdown#

We can use source code repository for more than source code – we can use it to document our project too!

However, so that we get the benefit of merging etc., we need to document stuff in plain text files. This could be .txt, HTML files, etc.,

In this course, we will use Markdown.

Markdown is an easy-to-use markup language that can be used to format plain text. It can be stored in repositories using tools like Github. It is readable in its raw format, but can be converted to better-looking formats such as PDF and HTML (these notes are written in Markdown!).

To write documents in markdown, you can just use any plain text editor, such as Notepad, VSCode, vi (if you are awesome), or even word processors – but make sure you save as plain text!

And best yet, Github and other repository hosting platforms format Markdown files for you when you read them online.

Use the following tutorials for this task:

In this task, you will format your team values using Markdown. Together, go back to your team_values.md on one team member’s machine and do the following:

Create a Markdown header called “Team values”
Put your list of values into an ordered list.
Format your values so that each value has a name, such as “Praise our legend” in bold, followed by a description of the value that is not in italics.
Commit, and push these changes to the remote repository on Github.
Go to the URL for your Github repository, which should be at [http://], where you should be able to click on team_values.md and see your values nicely formatted!

Goal: The end result should be your team values, formatted properly and looking professional.

Deliverable: Show your legend your beautifully-formatted team values.

Take a break#

⏱️ 10 minutes

Using team planning tools in COMP1100/COMP7110#

We expect teams to use the Github Project tool to track the team progress in this course.

Adding and closing tasks is straightforward and easy. The difficult part is deciding what tasks need to be completed, and who will do what by when.

The small overhead of using the Github Project tool is paid back to the team by them being able to see who is assigned to what, when they have agreed to deliver it, and whether it has been delivered.

Effective Small-Team Planning#

⏱️ 15 minutes - Group

Devices closed for this exercise

Managing yourself is challenging enough, but imagine if each limb was its own person and the only way to control them is through an itemised daily schedule. Welcome to team planning.

In this studio, we’ll look at a simple but effective model of project planning for small teams, such as yours, and a tool, called Github projects for managing your team.

../_images/teamwork.jpg — Fig. 1 Teamwork!#

In this course we recommend the use of Github projects, a team scheduling and planning application, but there are many other suitable tools.

Managing a small team: Who Does What By When#

The model of who does what by when is a simplified project management model, proposed by Manager Tools owner Mark Horstman. He agrees it is over-simplified, but the who, what, when trilogy is the most important three parts of project management.

All projects are completed by completing a series of tasks. It is difficult to know up front what all of those tasks will be. As a result, project management is a discipline in itself. For large-scale projects, even in the software industry, we may need multiple people to manage different parts of a project, and that could require using sophisticated project management tools, overview charts, etc.

But for projects with small teams of about 5 or less people, such sophistication is usually not necessary.

Further, all tasks are completed by people who are on the project. And people’s behaviour is often driven by deadlines.

So, during a small-team project, we just need to know three things: who does what by when.

No budget, no critical path, and no lengthy reporting. Note that budget IS important, but in small-team projects, especially start-ups, we see that: (a) budget is almost entirely taken up by the cost of people, so focus on people and the budget takes care of itself; and (b) budget is typically so front of mind that it does not need managing like our time.

Who#

People do tasks on projects. Tasks don’t get done without people. Great project managers know who is in the project and what they are doing.

As a team, we need to know who is completing each task so we can discuss with them, ask questions, follow up, and, ultimately, hold them accountable.

For each task on a project, ONE person should be assigned to do that, and that person is accountable for ensuring it is completed on time. If you see a task that requires more than one person, break it into smaller tasks (see more in the next step below).

Tips on defining who:

Each task should have one person responsible. If we have more than one, break it into smaller tasks.
Hold people accountable for completing tasks.

Does what#

Tasks are what make up a project. No project gets done if its constituent tasks are not done.

It is important to identify the tasks that need to be done in a project. We shouldn’t identify every task at the start of the project. This is a waste of time, especially in software projects, and doubly for innovation projects. Things change! Instead, we should have a high-level idea of where the project is going, and have clear tasks identified for the next 1-2 weeks.

Some tips on defining tasks:

Each task should be measurable. That is, it should be easy to tell whether it is done or not. For example, “Think about customer interview format” is not measurable because you can’t see my thinking. “Send draft interview questions to person X” is measurable, because it is clear whether I have sent it to X or not.
Make reporting part of the task. It is great when tasks are finished. It is much better when others in the team know that tasks are finished, especially if they are waiting on them. As part of a task, make reporting part of the task; e.g. “Check user story 7 into the repository and report this to person X”.

By when#

People hate deadlines. Actually, people hate having deadlines, but like other people sticking to their own deadlines. The fact is, deadlines drive behaviour. If university courses didn’t have deadlines, would you still submit all your work by the end of the semester?

Some tips on deadlines:

Make tasks that require no more than 5 working days; even less for most tasks. A week is about as far ahead as we tend to think. For example, if a task will take about 6 weeks, it is certain that there are smaller sub-tasks that can be done. “Conduct 70 customer interviews” could start with “Define customer interview questions”, then “Ask person X to check questions”, then “Interview first 5 customers to validate questions”, etc.
Make deadlines specific. For example, not “Next week” or even “Thursday 27th”, but “1pm on Thursday 27th”.
Shorter deadlines are often more effective. The famous Parkinson’s law is “work expands as to fill the time available for its completion”, which means: the more time we give people/ourselves, the longer we take. People will resist shorter deadlines, but seem to respond well to them. Longer deadlines do not drive behaviour. So keep deadlines short, but not so short that quality is affected.
Update the deadline if it is missed. We all miss deadlines sometimes. In such a case, don’t just say “OK, please submit it soon” – assign a new deadline immediately: “OK, thanks for letting us know. Can you please get it to us by 1pm on Thursday?”

Summary#

Basic team management planning means knowing:

Who is doing each task.
- One person per task.
- Hold people to account.
What each task is.
- Make tasks measurable.
- Make reporting part of the tasks.
When each task is due.
- Five working days maximum.
- Make deadlines specific.
- Shorter deadlines drive behaviour.
- Update deadline if missed.

Task planning exercises#

⏱️ 15 minutes - Group

Devices closed for this exercise

As a team, get together, brainstorm, and write down ALL of the tasks that you can think of for your team for the coming two weeks. (Hint: look at the course schedule).

Think about things to do with setup, project work, even scheduling meetings.

For each one, write down: who does what by when.

Your legends will be working with you to give feedback on your task breakdown.

Github Project setup#

⏱️ 30 minutes - Group

Devices open for this exercise

In this project, you will use Github projects. It allows us to define tasks, assign them to people, and give them due dates: who does what by when!. It also supports a whole other range of nice features that you may wish to explore independently.

You already have a Github account from an earlier studio. Once you log in, use the following tutorials to learn how to use Github.

Create a project#

One team member should create a repository project. To do this, navigate to your team repository, then select ‘Projects’ from the top menu, and then select ‘New Project’.

Note: You need to create this from your repository, otherwise it will be public to anyone in the organisation, who will be able to change tasks.

We suggest using the template called ‘Team planning’, but you are free to try others if you want.

You MUST name your project using the following format (same as your MS Teams channel):

[XY]_[Legend]

where XY is your team number using two digits and Legend is your legend name.

For further details, read:

🌐 [https://docs.github.com/en/issues/planning-and-tracking-with-projects/creating-projects/creating-a-project]

Understanding project boards#

You should now see a project board. If you have selected the ‘Team Planning’ template, along the ‘Backlog’ tag, you will see three columns: Todo, In Progress, and Done.

These three labels are a simplified Kanban board, which track:

Todo: the backlog of tasks that a team needs to complete.
In Progress: the tasks that the team is currently working on.
Done: the tasks that the team has completed.

The idea is that, when teams/individuals decide that tasks need to be done, they add the task to Todo.

When an individual starts on a task that is in the Todo backlog, they move it to In Progress, so their team members know what they are working on.

Finally, when it is done, tasks are moved to Done.

Feel free to add more lists if your team wants. For example, Kanban boards often have ‘Planning’ in between Todo and In Progress; and ‘Review’ between In Progress and Done.

Iterations#

Many projects (including the project in this course) are done in iterations. It is useful for Github projects to know the iteration dates, so you can ‘tag’ tasks, etc., with the iteration, making it easy to navigate by filtering things only from the current iteration, for example.

One team member should:

Go to the main page of your Github project.
Select the three dots ‘…’ from the top right of the page.
Click ‘Settings’ and then ‘Iteration’.
Create Iteration 1, Iteration 2, and Iteration 3 using the dates from the course profile.

Creating tasks#

Next, we will start adding tasks from the earlier exercise. If you run into trouble, consult the documentation:

🌐 [https://docs.github.com/en/issues/planning-and-tracking-with-projects/managing-items-in-your-project/adding-items-to-your-project]

Create tasks: Create new tasks (items) for the tasks that you are responsible for. Give the task a short, meaningful title, and add a description in the ‘Description’ field if more information is required; e.g. requirements, links to data source, etc.

This is the What in Who does what by when.

Click on the task name, and another window will appear, with a heap of information. Do the following:

Tag people: At the top as ‘Assignees’, which are the people responsible for completing the tasks. A task can belong to more than one person. Select who is responsible for the task you are adding if you are not the only one responsible.

This is the Who in Who does what by when.
Add due dates: Find the ‘End Date’ and assign a due date for the task.

This is the By when in Who does what by when.

Add iteration: Find ‘Iteration’, click on this, and assign the right iteration (Iteration 1, 2, or 3).

Tip: For any task, the due date should be before the end date of the iteration, but Github does not warn if it is not.

Seeing the due date#

Close the task so you can see the project board again. You will note that the due date does not appear in this view.

To make it show, select ‘Backlog’ (or the name of the view that you are using if you didn’t select the ‘Team Planning’ template), then ‘Fields’, and then ‘End Date’.

Filtering#

From the main project board, you should see a search bar with ‘Filter by keyword or by field’. Here, you can filter to see you own tasks only, by name, etc.

One ‘hidden’ option is to filter by iteration. Type “iteration: ” and then scroll down to see Iteration 1, Iteration 2, and Iteration 3. This is useful to focus only on tasks that are relevant in the current iteration. You can search “iteration:@current” for this too.

And you’re done!#

You now have a project management system that is suitable for small teams!

Your responsibility is to now use this task tracker and look at it when you want to know what others are working on.

Initial hypotheses and interview questions#

⏱️ 45 minutes - Team

By now, you should have decided on 1-3 challenges that you want to explore.

In this part of the studio, as a team:

List out the hypotheses for your project. Remember to use the structure in the chapter on experimentation.
Derive a list of interview questions that test these hypothesis. Remember to use the tips in the chapter on interviews.

After the studio, create test cards for your hypothesis and start interviewing, as outlined in this week’s homework.

Exit Ticket#

Your exit ticket for this week’s studio is to:

Show your legend that you have created a private repository named using the format: [XY]_[Legend], containing your team values file.
Show your legend your README.md where you have added the following for each team member: Name, UQ student number, Github username, and UQ email address.
Each team member show their cloned copy of the most recent repository, including the branch with their interviews that has been merged.
Get feedback from your legend on the hypotheses and questions that you have come up with for your project, and act on it.

Bonus: It’s dangerous to go alone! Take this.#

⏱️ ∞

Here is a collection of valuable knowledge and insight that may help you along in this course. Feel free to review this content in your own time.

Week 4: Repositories and Version Control

Contents

Week 4: Repositories and Version Control#

Studio Abstract#

Repositories in COMP1100/COMP7110#

Repositories in software projects#

Why use repositories?#

Branches#

Commit messages#

Summary#

Your team repository#

Overview#

Set up account and accept course invite#

Installing a Git client#

Setting up a GitHub repository for your team#

Clone your repository#

Adding, committing, and pushing files and folders#

Understanding branch and merge#

Take a break#

Managing merge conflicts#

One quick point on terminology#

More than source code: using Markdown#

Take a break#

Using team planning tools in COMP1100/COMP7110#

Effective Small-Team Planning#

Managing a small team: Who Does What By When#

Who#

Does what#

By when#

Summary#

Task planning exercises#

Github Project setup#

Create a project#

Understanding project boards#

Iterations#

Creating tasks#

Seeing the due date#

Filtering#

And you’re done!#

Initial hypotheses and interview questions#

Exit Ticket#

Bonus: It’s dangerous to go alone! Take this.#

Creating Pull Requests#

How to Use Git & GitHub Desktop#

Extended syntax for Markdown#
